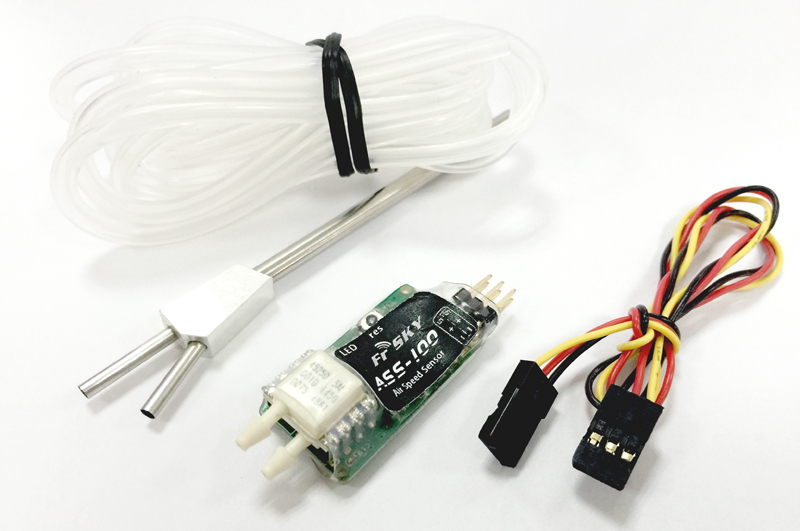

• Air Speed Sensor- ASS-100- High Rrecision

    FrSky Smart Port Air Speed Sensor ASS-100 is designed for FrSky Smart Port enabled system, and can provide Airspeed Data for your entire flight.

  • SPECIFICATION

    Compatibility:

    FrSky Smart Port enabled receivers, such as X8R, X6R, X4R, etc.

    Model:

    ASS-100

    Dimension:

    Circuit Board: Weight 5 g, dimensions 33.14×17.14×10.45mm

    Pitot Tube: Weight 4 g, length 101mm, diameter 2.6 mm

    Pitot Tube Hose: Silicon, clear, 3 feet (1 meter), 2.2mm ID, 3.8mm OD

    Operating Voltage Range:

    DC 4 -10 V

    Operating Current:

    25mA@5V

    Measurement Range:

    0~360km/h  (0~223.7mile/h )
